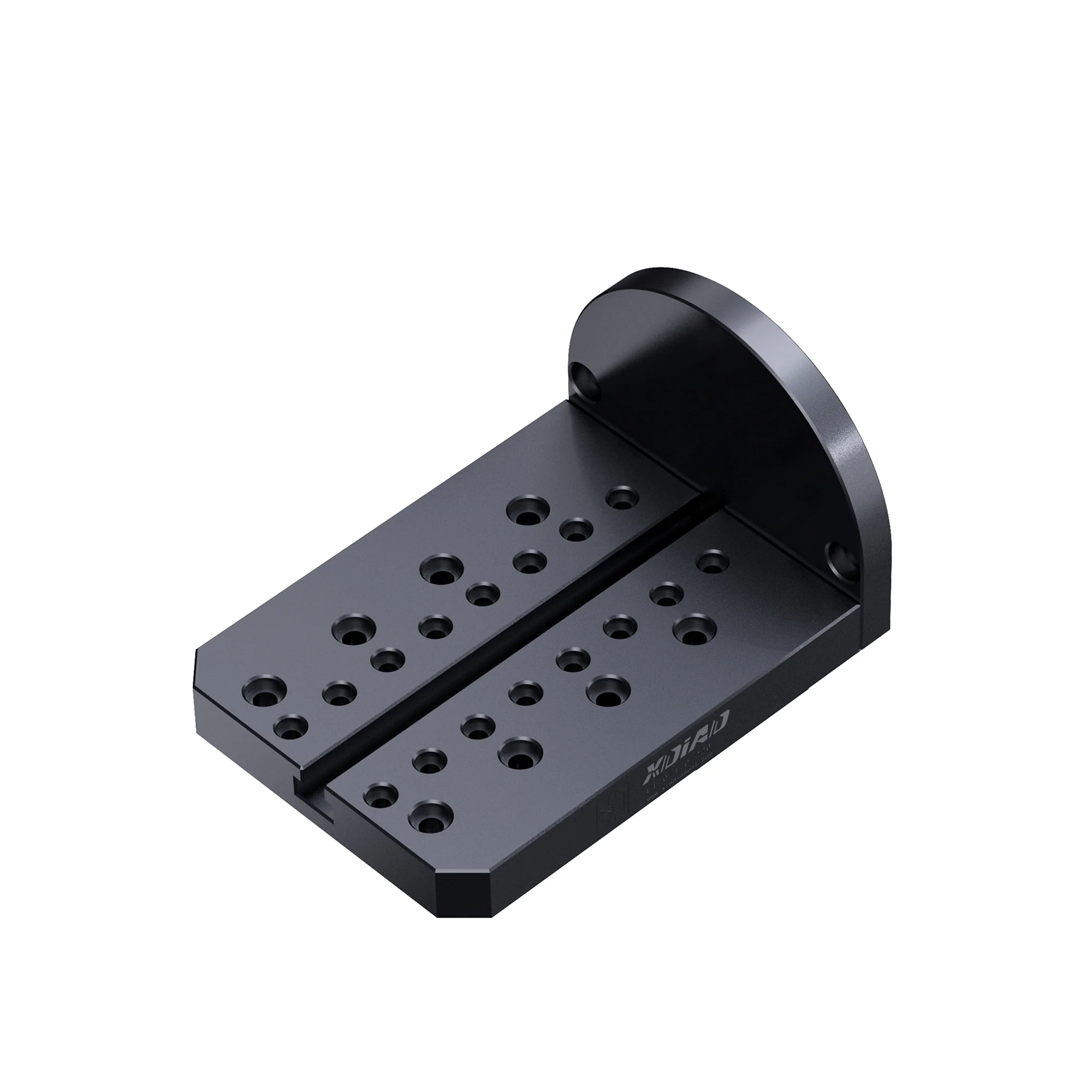

CNC XINDIAN four-axis zero point quick change single-sided L-shaped bridge plate
Core Value: Creating Your Perfect Plug-and-Play Four-Axis Fixture System

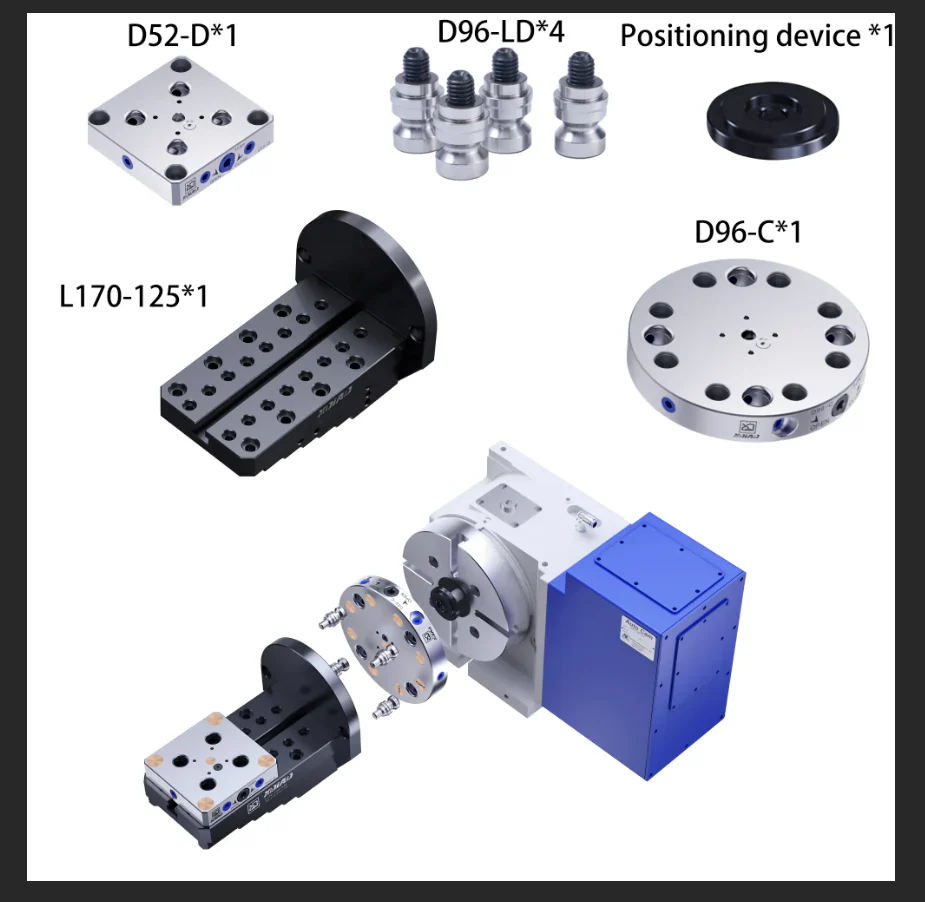

Say goodbye to traditional, cumbersome clamping and alignment. By combining our L-plate with your existing zero-point quick-change system (HWR/LANG), you can seamlessly switch from a "general-purpose four-axis worktable" to a "dedicated vise clamping station" in just tens of seconds. No re-alignment is required; the machine tool is ready for production immediately.
Core Product Advantages: Transforms traditional "machine tool setup time" into valuable "machine tool cutting time," significantly improving overall equipment utilization.
1、Precise Positioning, One-Second Switching
The L-plate has a pre-installed zero-point quick-change interface at the bottom. Simply install the corresponding pull stud to achieve second-level locking and disengagement with the zero-point base on your four-axis worktable, with a repeatability accuracy of up to 0.005mm, ensuring the origin is always reached during installation.
2、Flexible Expansion, Multi-Purpose Design

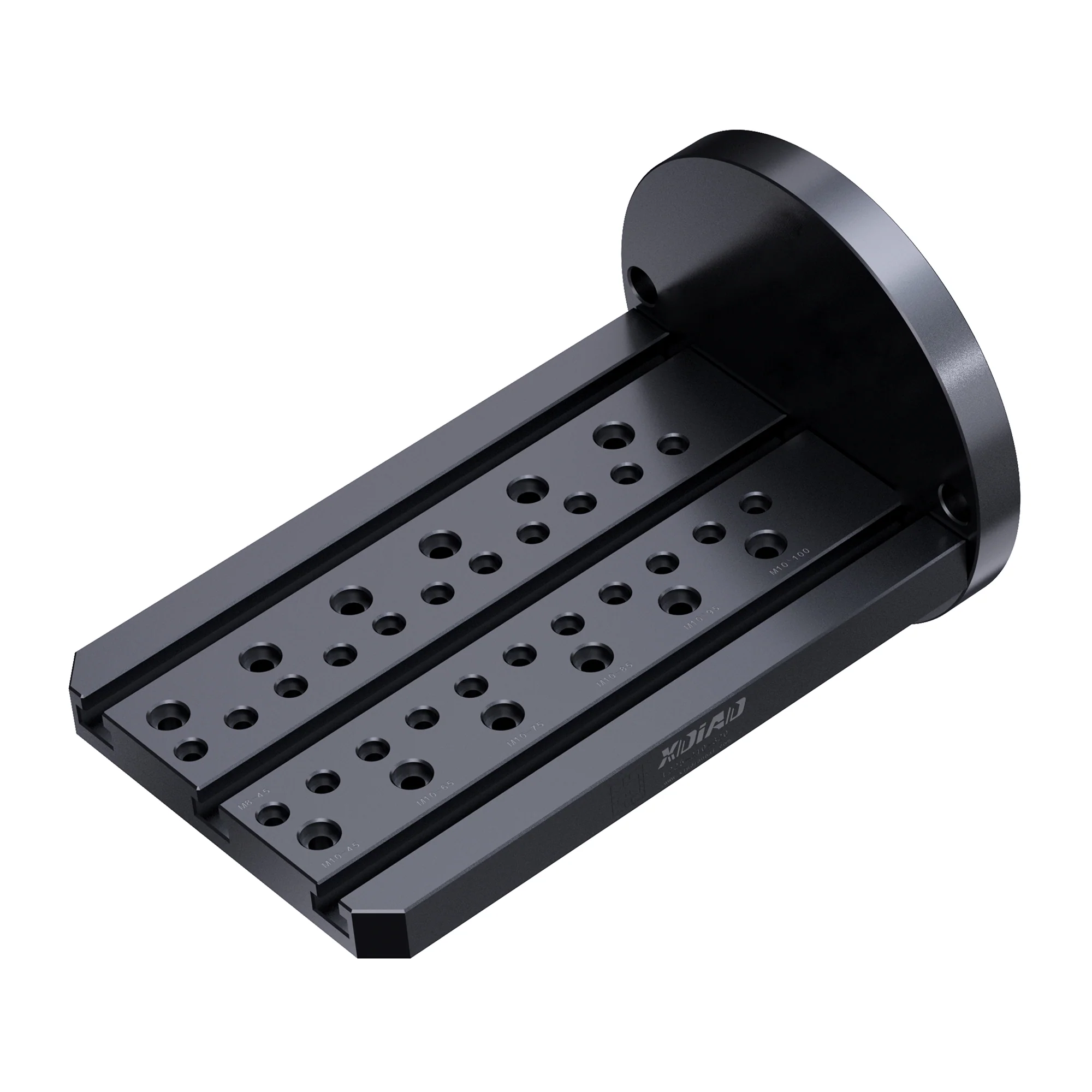

The L-plate has pre-drilled standardized mounting holes on its vertical surface, allowing direct installation of "Xin Dian" brand self-centering vises or other modular tooling.
3、Free Up Machine Tools, Improve Efficiency
When large workpieces or special processes are required, the L-plate can be quickly disassembled, instantly restoring the complete four-axis worktable without occupying machine tool resources.
Applicable Scenarios:
•Situations requiring rapid switching between vise clamping and plate machining on a four-axis machine tool.
•Flexible production modes with small batches and diverse product types.
•Users who wish to transform their four-axis machine tools into standardized tooling quick changeover platforms.
•Together with a zero-point quick changeover system, creating modular, high-precision workshop-level tooling solutions.
Technical Specifications：
• Applicable Axis Type: CNC 4-axis
• Interface Standard: Compatible with LANG/HWR brand zero-point quick-change systems
• Material: SAE/AISI 1045 steel
• Surface Treatment: Rust-proof blackening
Original: $157.00
-70%$157.00
$47.10More Images
