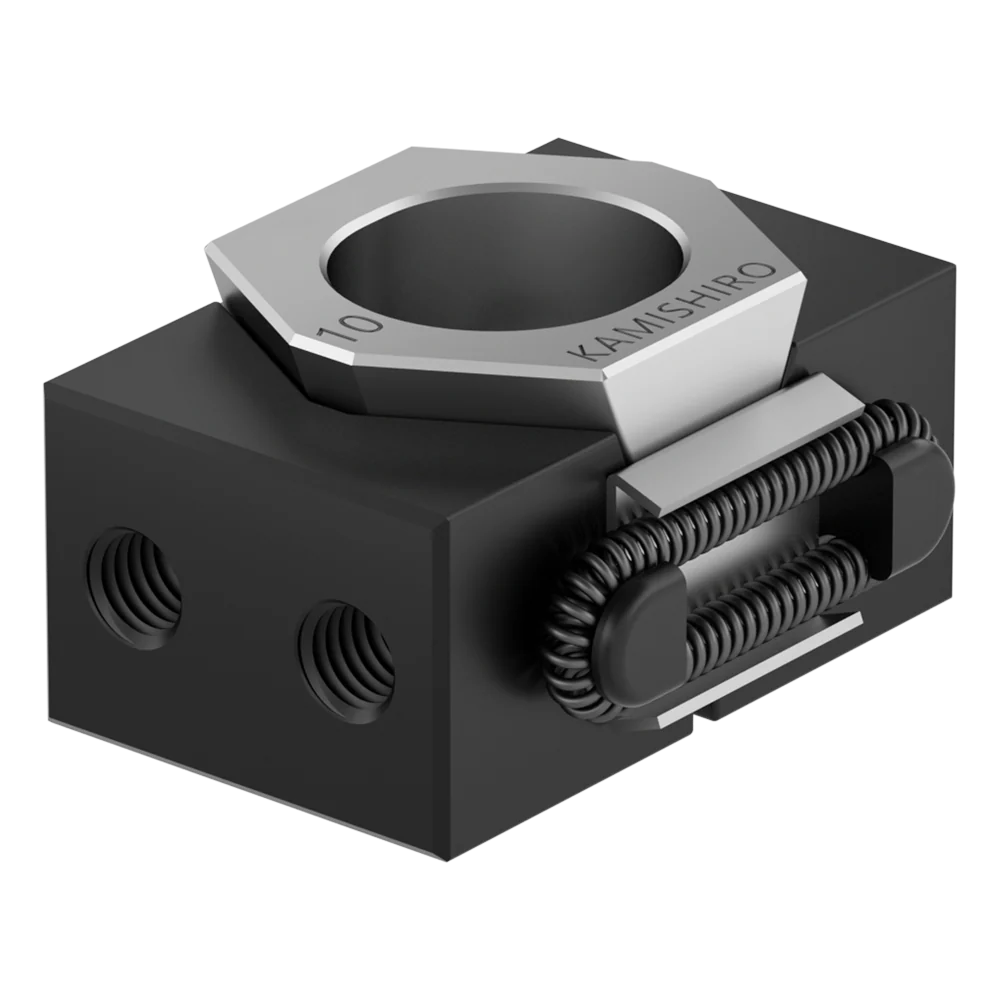

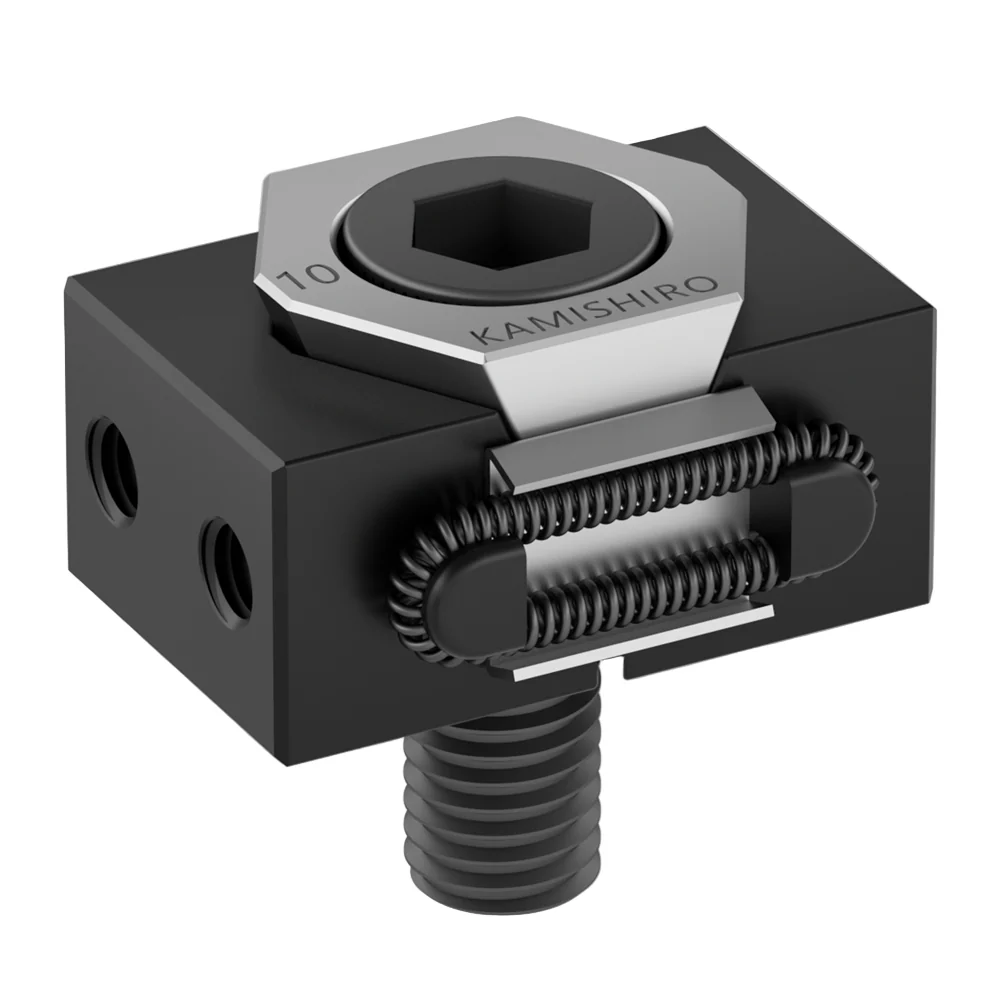

CNC Kamishiro Mini Integrated OK Fixture
The CNC Kamishiro Mini Integrated OK Fixture offers a streamlined clamping solution for machining, combining strength and precision for efficient workholding. Designed for various machining tasks, these integrated clips provide stable, secure, and accurate positioning, improving productivity and precision in both complex and routine machining applications.
| Model | a | b | c | d | e | f | g |
|---|---|---|---|---|---|---|---|
| S06 | 16.8 | 5 | 17.1 | 16.8 | 7.4 | 10.4 | 8 |
| S08 | 22.5 | 6 | 23 | 22.5 | 9.5 | 13.7 | 9 |
| S10 | 25.4 | 8 | 28.9 | 28.2 | 12.2 | 17.2 | 12.7 |
| S12 | 38.1 | 10 | 34.7 | 33.8 | 14.7 | 20.5 | 16 |
| Model | Clamping Force (kN) | Tightening Torque (N.m) | Max. Hole Depth (mm) | Material | Min.height of workpiece (mm) | Weight (g) |
|---|---|---|---|---|---|---|
| S06 | 9.5 | 12 | 12 | 440C | 3 | 11 |
| S08 | 15 | 25 | 15 | 440C | 5 | 29 |
| S10 | 25 | 54 | 20 | 440C | 7 | 48 |
| S12 | 40 | 89 | 25 | 440C | 9 | 114 |
